Electric Transformer

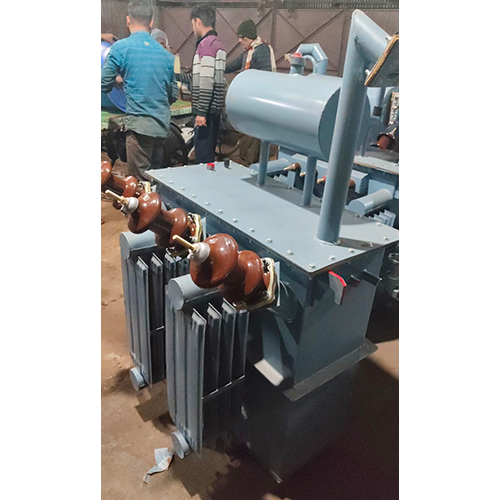

• Capacity
• 100 kVA

• Coil Material
• Other , Copper (standard) / Aluminum (optional)

• Coil Number
• Double Winding

• Coil Structure
• Laminated Core

• Cooling Type
• ONAN (Oil Natural Air Natural)

• Dimension (L*W*H)
• 1450 mm x 650 mm x 1100 mm

• Efficiency
• 98% (approximate)

• Frequency (MHz)
• 50 Hz

• High Voltage
• 11000 V

• Load Loss
• Approx. 1170 W

• Low Voltage
• 433 V

• Material
• CRGO (Cold Rolled Grain Oriented) silicon steel core, copper/aluminum windings

• Operating Temperature
• -25C to +50C

• Output
• 100 kVA

• Phase
• Three Phase

• Power Scope
• 100 kVA

• Product Type
• Other, Distribution Transformer

• Rated Voltage
• 11000 V / 433 V

• Standard
• IS 1180, IS 2026

• Usage
• Power distribution in industrial, commercial, and residential applications

• Weight
• Approx. 780 kg

• Capacity
• 315 kVA

• Coil Material
• Other , Electrolytic Copper

• Coil Number
• Double Winding

• Coil Structure
• Other, Layered Winding

• Cooling Type
• ONAN (Oil Natural Air Natural)

• Dimension (L*W*H)
• 1600 x 1200 x 1700 mm

• Efficiency
• 99.1%

• Frequency (MHz)
• 50 Hz

• High Voltage
• 11 kV

• Load Loss
• 2250 W

• Low Voltage
• 433 V

• Material
• Copper & Silicon Steel

• Operating Temperature
• -25C to +45C

• Output
• 315 kVA

• Phase
• Three Phase

• Power Scope
• 315 kVA

• Product Type
• Other, Oil-Immersed Transformer

• Rated Voltage
• 11 kV / 0.433 kV

• Standard
• IS 1180 (Part 1): 2014 / IEC 60076

• Usage
• Power Distribution

• Voltage Booster Type
• Other, Tap Changer

• Weight
• Approx. 1450 kg

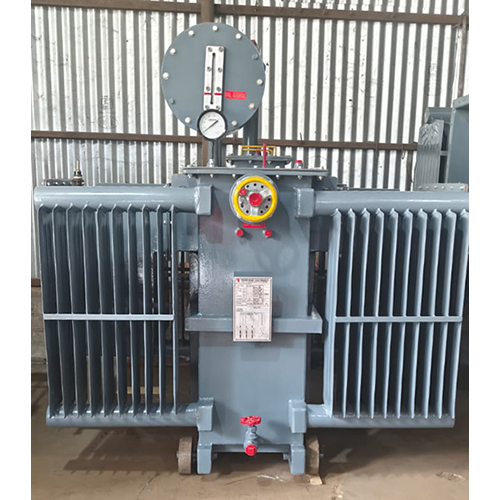

• Capacity
• 400 kVA

• Coil Material
• Other , Copper/Aluminum

• Coil Number
• Double Winding

• Coil Structure
• Toroidal

• Cooling Type
• ONAN (Oil Natural Air Natural)

• Dimension (L*W*H)
• 1800 mm x 1100 mm x 1600 mm

• Efficiency
• 98.5%

• Frequency (MHz)
• 50 Hz

• High Voltage
• 11 kV

• Load Loss
• up to 4200 W

• Low Voltage
• 415 V

• Material
• Copper/Aluminum

• Operating Temperature
• -10C ~ +45C

• Output
• 400 kVA

• Phase
• Three Phase

• Power Scope
• 400 kVA

• Product Type
• Other, Distribution Transformer

• Rated Voltage
• 400 V

• Standard
• IS 1180/IEC 60076

• Usage
• Power Distribution

• Voltage Booster Type
• Other, Standard Transformer Design

• Weight
• Approx. 1500 kg

• Capacity
• 250 kVA

• Coil Material
• Other , Copper or Aluminum

• Coil Number
• Other, Double (Primary and Secondary)

• Coil Structure
• Other, Layer or disc type winding

• Cooling Type
• Oil-cooled (ONAN) or dry-type

• Dimension (L*W*H)
• Dependent on configuration, approx. 1.5m*1.1m*1.7m

• Efficiency
• High efficiency, low loss design

• Frequency (MHz)
• 50/60 Hz

• High Voltage
• Up to 11 kV

• Load Loss
• As per industry standards (approx. 2300-3000W at full load)

• Low Voltage
• 415V or 433V

• Material
• Copper or aluminum windings, laminated steel core

• Operating Temperature
• -10C to +50C

• Output
• 415V/433V

• Phase
• Three Phase

• Power Scope
• Medium to large load applications

• Product Type
• Electrical Transformer

• Rated Voltage
• Primary: up to 11 kV, Secondary: 415V/433V

• Standard
• IS 2026 / IEC 60076

• Usage
• Industrial, commercial, residential power distribution

• Voltage Booster Type
• Other, Step-down transformer

• Weight
• Varies, typically 900-1500 kg

• Capacity
• 1000 kVA

• Coil Material
• Other , Copper / Aluminium

• Coil Number
• Double Winding

• Coil Structure
• Toroidal

• Cooling Type
• ONAN (Oil Natural Air Natural)

• Dimension (L*W*H)
• 2250 mm x 1370 mm x 1760 mm

• Efficiency
• 98% - 99%

• Frequency (MHz)
• 50 Hz

• High Voltage
• 11 kV

• Load Loss
• Approx. 7800 W

• Low Voltage
• 0.433 kV

• Material
• Copper / Aluminium

• Operating Temperature
• -25C to +50C

• Output
• 1000 kVA

• Phase
• Three Phase

• Power Scope
• 1000 kVA

• Product Type
• Other, Oil-Immersed Power Transformer

• Rated Voltage
• 11 kV / 0.433 kV

• Standard
• IS 1180 / IEC 60076

• Usage
• Power Distribution

• Voltage Booster Type
• Other, Tap Changing

• Weight
• Approx. 3500 kg

• Product Type
• Electrical Transformer

• Efficiency
• High

• Features
• Stable performance

• Frequency (MHz)
• 50-60 Hertz (HZ)

• Material
• Metal

• Phase
• Single/Three phase

• Rated Voltage
• 220-440 Volt (V)

• Usage
• Power distribution

• Features
• Stable performance

• Frequency (MHz)
• 50-60 Hertz (HZ)

• Material
• Metal

• Phase
• Single/Three phase

• Rated Voltage
• 220-440 Volt (V)

• Usage
• Power distribution

• Efficiency
• High

• Features
• High quality

• Frequency (MHz)
• 50-60 Hertz (HZ)

• Material
• Metal

• Phase
• Single/Three phase

• Usage
• Power distribution
