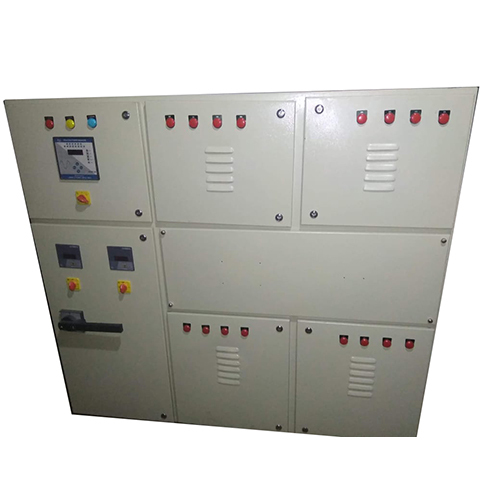

LT Distribution Panel

Name: LT Distribution Panel
Brand: POWER MAKE ELECTRICALS
Price: 150000 INR
Availability: InStock

Price 150000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

LT Distribution Panel Specification

Panel Type
Floor Mounted

Control System
Manual or Auto

Protection Class
Class 1

Thickness
1.6 mm - 2.0 mm

Cooling System
Natural Air / Ventilated

Rated Current
400A - 3200A

Way
As per design

Cabinet Material
MS / CRCA Sheet

Cover Material
Mild Steel Powder Coated

Protection Level
IP42/IP54

Features
Overload, Short circuit, Earth fault protection; Power Monitoring; Modular Design; Segregated chambers

Rated Insulation Voltage
660V

Current Rating
Up to 3200A

Connectivity Type
Cable / Busbar

Base Material
Mild Steel

Operating Voltage
Up to 415V

Components
MCB, MCCB, ACB, CTs, Meters

Rated Operation Voltage
415V

Product Type
LT Distribution Panel

Material
Mild Steel (MS)

Surface Finish
Powder Coated

Standard
IS 8623 / IEC 60439

Surface Color
Grey / Siemens Grey

Rated Voltage
415V AC

Frequency (MHz)
50 Hz

Maximum Output Current
Up to 3200A

Dimension (L*W*H)
Custom-built / as per requirement

Application
Industrial, Commercial, Residential Power Distribution

IP Rating
IP42/IP54

Display Type
Digital/Analog Meters

Circuit Breakers
ACB, MCCB, MCB

Changeover
Manual/Automatic

Wiring Entry
Top or Bottom

Earthing Provision
Provided

Flame Retardancy
Yes

Neutral Link
Fitted

Cable Alley
Provided

Indication Lamps
Provided

Phase
Three Phase

Type
Indoor/Outdoor

Painting
Epoxy powder coat

Metering
Digital/Analog

Busbar Type
Copper/Aluminum

Door Type
Double door

Panel Mounting
Floor standing

LT Distribution Panel Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
7 Days

About LT Distribution Panel

LT (Low Tension) distribution panels are essential for safely managing and distributing electrical power (typically

) from transformers or generators to various industrial, commercial, and residential loads. They protect against overloads, short circuits, and phase imbalances while monitoring power parameters

Superior Safety and Protection

LT Distribution Panels are built with flame-retardant mild steel, offering overload, short circuit, and earth fault protection. With IP42/IP54 ratings, these panels are suitable for both indoor and outdoor installations, ensuring user and equipment safety under rigorous operating conditions.

Versatile and Customizable Design

Each panel can be tailored to specific requirements, supporting a current rating of up to 3200A and custom dimensions. The modular design with segregated chambers and cable alleys enhances operator convenience, adaptability, and system scalability for future expansions.

Efficient Power Monitoring and Control

Integrated with digital or analog metering, LT Distribution Panels provide precise real-time monitoring of power usage. Manual or automatic changeover functions streamline control processes, and connectivity via cable or busbar ensures reliable and efficient power distribution in various settings.

FAQ's of LT Distribution Panel:

Q: How is the LT Distribution Panel installed and what are its mounting options?

A: The LT Distribution Panel is designed for floor mounting, making it suitable for industrial, commercial, or residential power distribution. Its installation location-indoor or outdoor-depends on your operational needs and the IP rating (IP42/IP54) ensures environment-specific protection.

Q: What types of circuit breakers and control components are included in this panel?

A: This panel supports a range of circuit breakers such as ACB, MCCB, and MCB. It also features CTs, meters, indication lamps, and can be configured with a manual or automatic control system for comprehensive protection and operational flexibility.

Q: Where is cable entry provided and does the panel support both copper and aluminum busbars?

A: Wiring entry can be configured at the top or bottom of the panel for installation convenience. The design supports busbars made of either copper or aluminum, allowing for flexibility in accordance with your requirements or budget.

Q: What process ensures the durability and finish of the LT Distribution Panel?

A: Each panel is constructed from mild steel (MS) or CRCA sheet and finished with an epoxy powder coating. This process not only enhances its flame retardancy but also provides a robust surface that resists corrosion and wear, maintaining appearance and function over time.

Q: How can I monitor and control power usage with this panel?

A: The LT Distribution Panel features digital or analog metering systems for real-time power monitoring. Manual or automatic changeover ensures seamless power management, and the panel supports both cable and busbar connectivity for efficient load handling.

Q: What are the benefits of using this LT Distribution Panel in power distribution systems?

A: Benefits include enhanced safety through short circuit and overload protection, modular and customizable design for various application requirements, effective power monitoring, and adherence to international standards for reliability and durability.
